Description

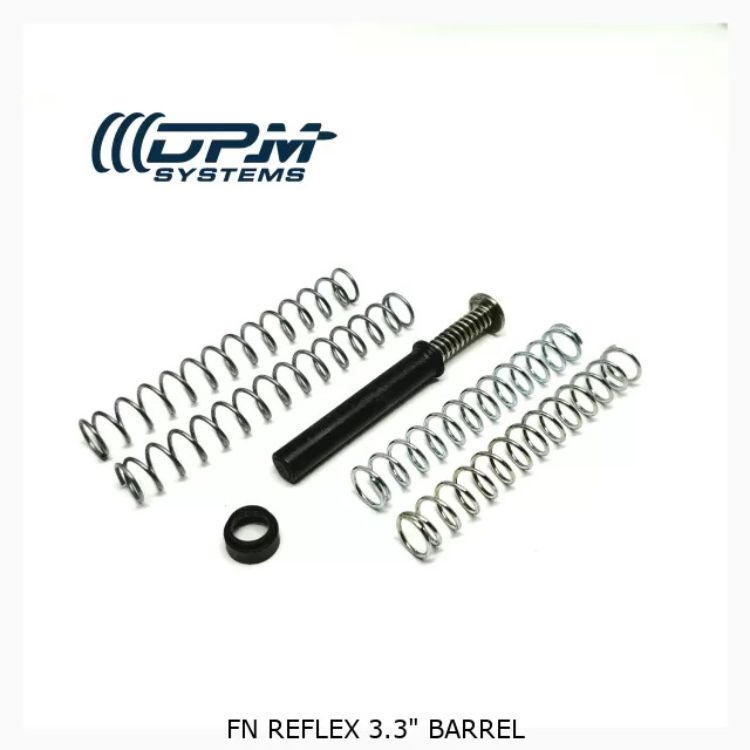

Recoil System for FN REFLEX by DPM. The mechanical recoil reduction system for the FN REFLEX 3.3″ Barrel offers a cutting-edge solution for reducing recoil and improving shooting performance. This system is a direct replacement for the stock recoil rod and retains the original configuration of the pistol, making it easy to install without altering the firearm’s design.

The DPM system utilizes a multi-spring intricate guide rod, consisting of internal springs and four external springs to fine-tune the recoil reduction according to the shooter’s preferences. The external springs come in varying lengths, with longer springs providing more coils and a higher pound rating, offering customizable recoil force. The included springs allow shooters to adjust the system based on their shooting style and the ammunition used.

Additionally, the kit includes a stainless steel spring plug, which is required for installation when using the DPM Recoil kit.

Recoil System for FN REFLEX – Characteristics:

• Multi-Spring Intricate Guide Rod: The system includes both internal and external springs to optimize recoil management and firearm functionality.
• Customizable Recoil Adjustment: Four external springs of varying lengths provide flexibility in tuning the recoil system, allowing shooters to fine-tune the firearm’s performance.
• Recoil Reduction: Significant reduction in recoil for improved follow-up shot speed, greater control, and increased accuracy.
• Slide and Frame Protection: The recoil system reduces harsh impacts, helping protect the slide and frame from damage and wear, increasing the firearm’s longevity.
• Elimination of Jams: Fine-tuned recoil management minimizes the likelihood of malfunctions and jams, ensuring smoother, more reliable operation.
• Improved Accuracy and Control: By reducing recoil and smoothing slide movement, the system enhances shooting control, accuracy, and double-tap concentration.

Power Rates:

• Soft Springs (0.95mm Wire Diameter):
  • Slide on the Battery (Idle Position):
• Short Spring: 6 lbs
• Long Spring: 6.5 lbs
• • Slide Full Open Position (Approx.):
• Short Spring: 9 lbs
• Long Spring: 10 lbs
• Standard Springs (1.0mm Wire Diameter):
  • Slide on the Battery (Idle Position):
• Short Spring: 7 lbs
• Long Spring: 7.5 lbs
  • Slide Full Open Position (Approx.):
• Short Spring: 11 lbs
• Long Spring: 12 lbs

Overall Advantages:

• Faster follow-up shots
• Improved firing speed
• Slide and frame protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Enhanced control and accuracy

Watch This Video: How The DPM Recoil System Work

Watch this video to see a demonstration of how the recoil springs system work and what it does to your weapon performance:
