Recoil Reduction System for Kimber KDS9c 4.09″ – DPM

Description

The DPM Recoil Reduction System for Kimber KDS9c 4.09″ Barrel delivers advanced performance through its innovative multi-spring technology. Engineered as a direct replacement for the factory recoil rod, this system dramatically reduces recoil, improves accuracy, and extends the lifespan of your pistol’s frame. An internal spring prevents the slide from slamming into the frame, ensuring smoother function and long-term reliability.

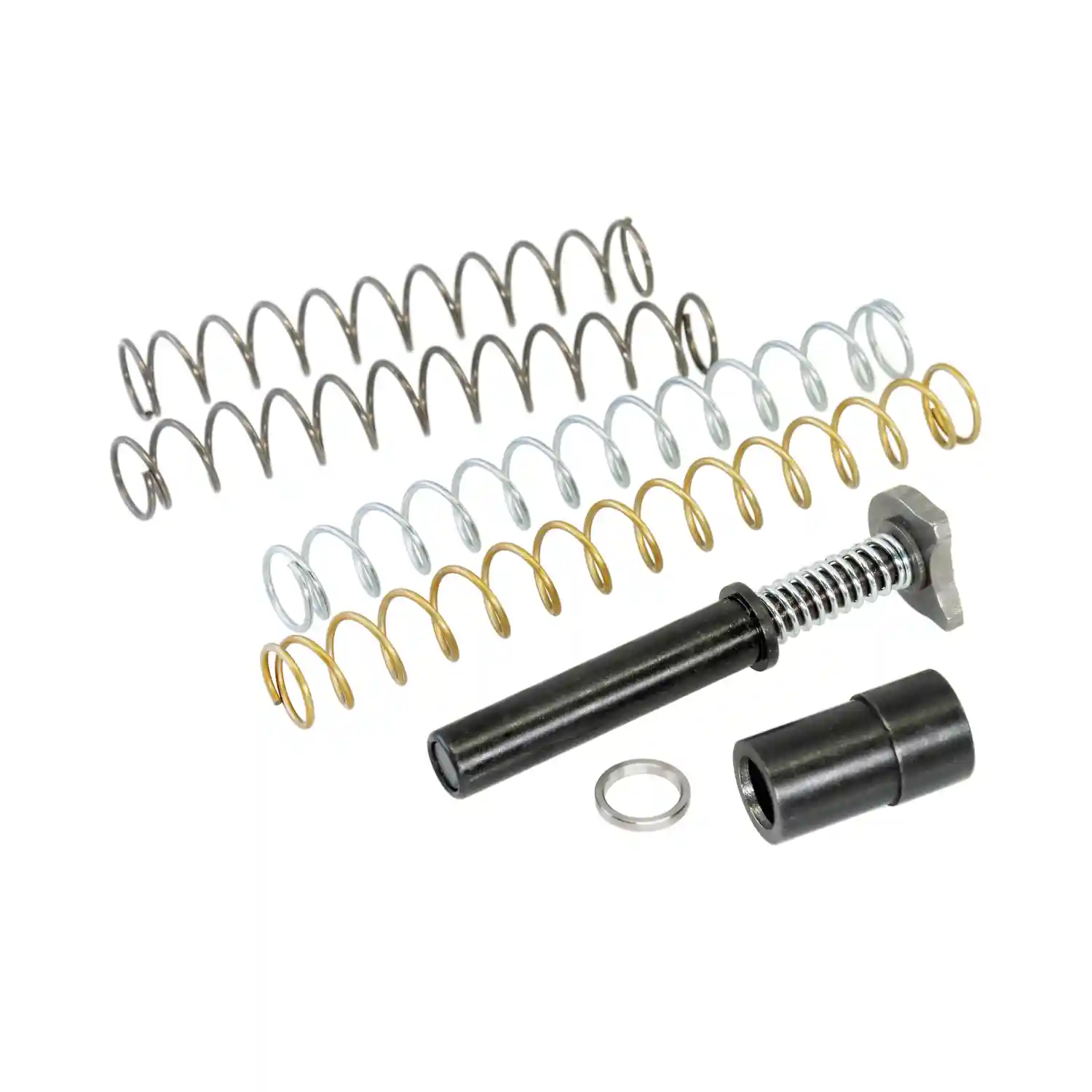

Specifically designed for the Kimber KDS9c, this system includes short and long recoil springs with wire diameters of 1.0mm and 1.1mm, providing versatile power options. Slide idle force ranges from 6.2 lbs to 8.15 lbs, while total slide force ranges from 12 lbs to 15.4 lbs. Optional spacers can add approximately 2.5 lbs of additional resistance, allowing you to fine-tune performance to your shooting style.

For proper installation, the spring plug must always be used with the DPM recoil rod and springs. As DPM continually enhances its technology, product versions may vary with updated springs, plugs, or additional components.

Recoil Reduction System for Kimber KDS9c – Features:

• Reduced recoil for better accuracy and control
• Faster, more precise follow-up shots
• Protects slide and frame from wear and damage
• Minimizes risk of jams during operation
• Improves firing speed and double-tap consistency
• Customizable with optional spacers for added force

Power Rates:

Slide on the battery (idle position)

• Silver Short Spring (1.0mm): 6.2 lbs
• Gold Long Spring (1.0mm): 7.3 lbs
• Black Short Spring (1.1mm): 7 lbs
• Black Long Spring (1.1mm): 8.15 lbs

Total force (slide full open position):

• Silver Short Spring (1.0mm): 12 lbs
• Gold Long Spring (1.0mm): 13.2 lbs
• Black Short Spring (1.1mm): 14.3 lbs
• Black Long Spring (1.1mm): 15.4 lbs

Optional spacer use adds approximately +2.5 lbs of resistance for each spring.

Compatible Pistols:

This recoil reduction system is compatible with:

• Kimber KDS9c (4.09″ Barrel)

Upgrade your Kimber KDS9c with the DPM Recoil Reduction System to achieve reduced recoil, smoother operation, and superior shooting performance.
